In recent years, the industry drone market has developed rapidly, and fixed-wing and vertical take-off and landing UAV flight platforms have become increasingly mature. Industry drones have obvious needs for long-range wireless data link systems with high reliability, long distances , light weight, and low power consumption. The M52 breaks through technical difficulties once again, and with powerful functions and high integration, it sets a new paradigm for long-distance real-time high-definition video and data transmission of industrial drones.
M52 uses advanced wireless channel coding technology and channel control technology, and the wireless real-time transmission distance is as far as 34km. At the same time, due to the use of an efficient data processing algorithm, the M52 can transmit up to 4 independent flight control data, telemetry data, PTZ control data, and mount control data at the same time, making the industry drones even more powerful and achieving ultra-long distances. Real-time inspection, mapping, survey, patrol and other needs.

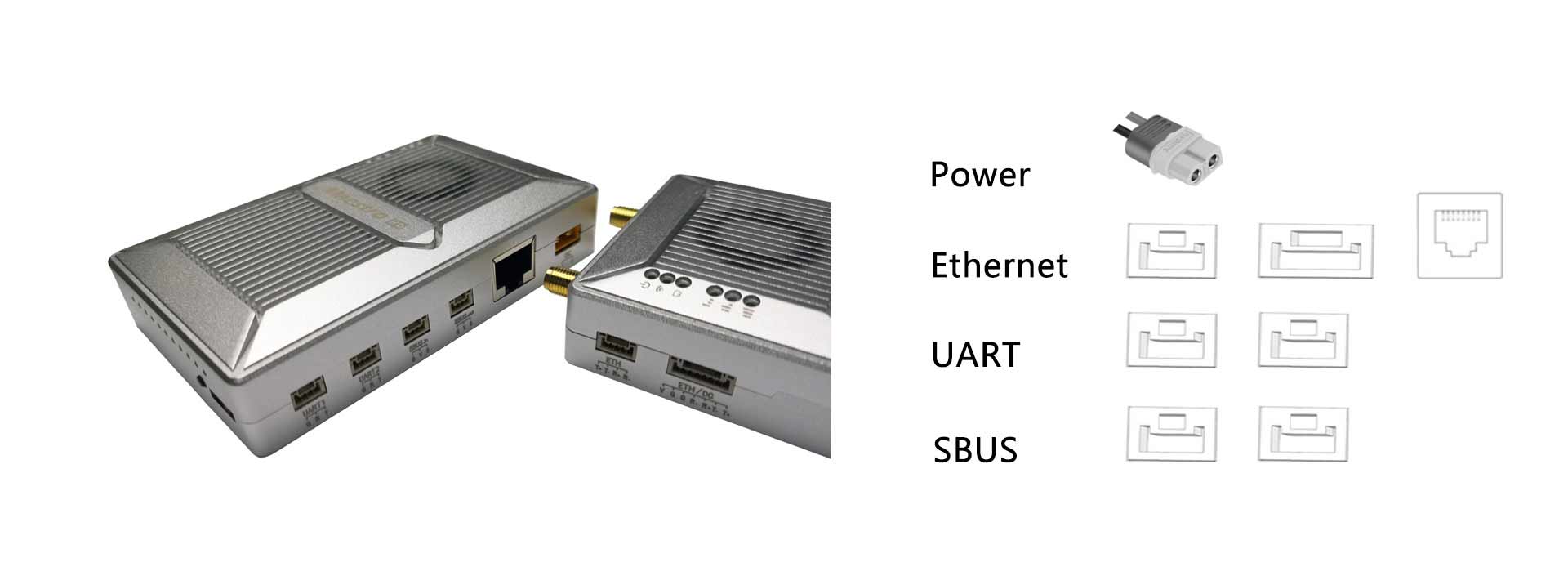

The M52 has a high degree of integration and rich interfaces, which can meet the diverse mounting requirements of the industry drone. The three 100M Ethernet ports can not only mount multiple network interface pods at the same time, but also when you need to connect to the HDMI / SDI / AV pod or output HDMI signals to the monitor, you can use the M52's Ethernet port with Our codec series MF05 and MF08 are directly interconnected * 1 , which is more flexible and convenient to use. M52 has 2 serial ports-UART1 & UART2. The serial port supports Mavlink protocol and Transparent protocol. Users can configure serial port protocol and baud rate through Maestro Assistant tool or Web UI. M52 has SBUS input and output interface, users can use it to transmit remote control signals.
The M52 has a powerful data and video processing platform * 2. Users can call the M52's SDK software interface through a host computer or an embedded processing platform to achieve personalized requirements. At present, users can obtain the signal strength (RSSI) of wireless signals through the SDK interface, and change wireless parameter information such as operating frequency, bandwidth, and transmit power online. M52's software system integrates the MavLink protocol analysis SDK, users can easily check flight altitude, GPS, battery power, flight distance and other information. Users can control these OSD information to be superimposed on the output HD video. Through in-depth cooperation with Payload manufacturers in the industry, M52 supports the control protocols of mainstream manufacturers in the industry and will continue to increase the number of supported manufacturers. Users only need to perform simple parameter transfers through the SDK to implement functions such as PTZ control, yelling, and throwing. The SDK calling interface of M52 can be UART (TTL / RS232) serial port or standard Ethernet port, which is very convenient for users.
M52 can make the wireless signal transmission distance up to 34km * 3 , so that the industry drones can explore a wider space during the operation process and improve the operation efficiency.

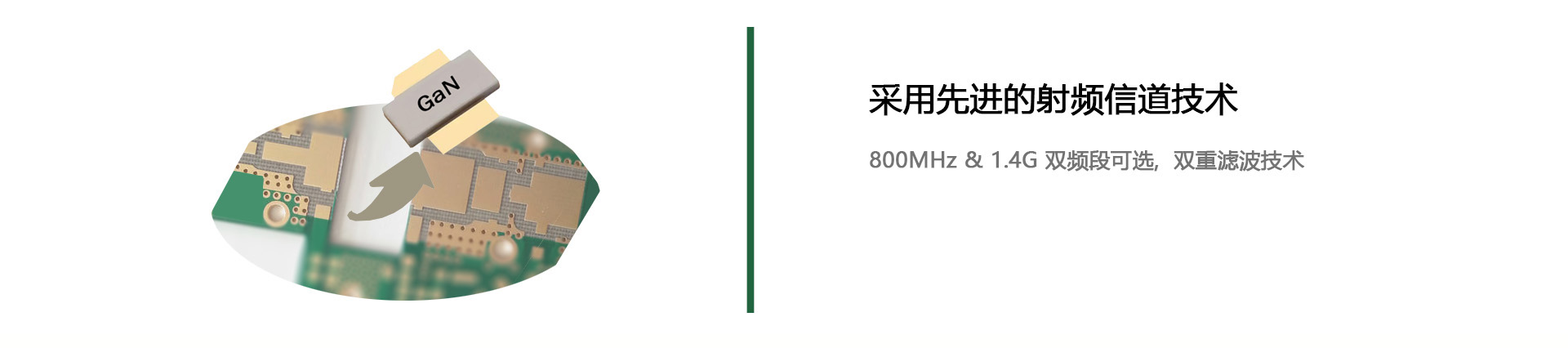

M52 uses advanced RF channel technology and dual channel filtering design, which makes it have strong anti-interference performance. M52 has two optional frequency bands of 800MHz and 1.4GHz. Due to the use of our company's patented invention of the amplifier and optimization of the RF circuit, the M52 has high efficiency and low heat generation. Thanks to good circuit design and industrial thermal design, the M52 can meet a variety of extreme industrial application needs.

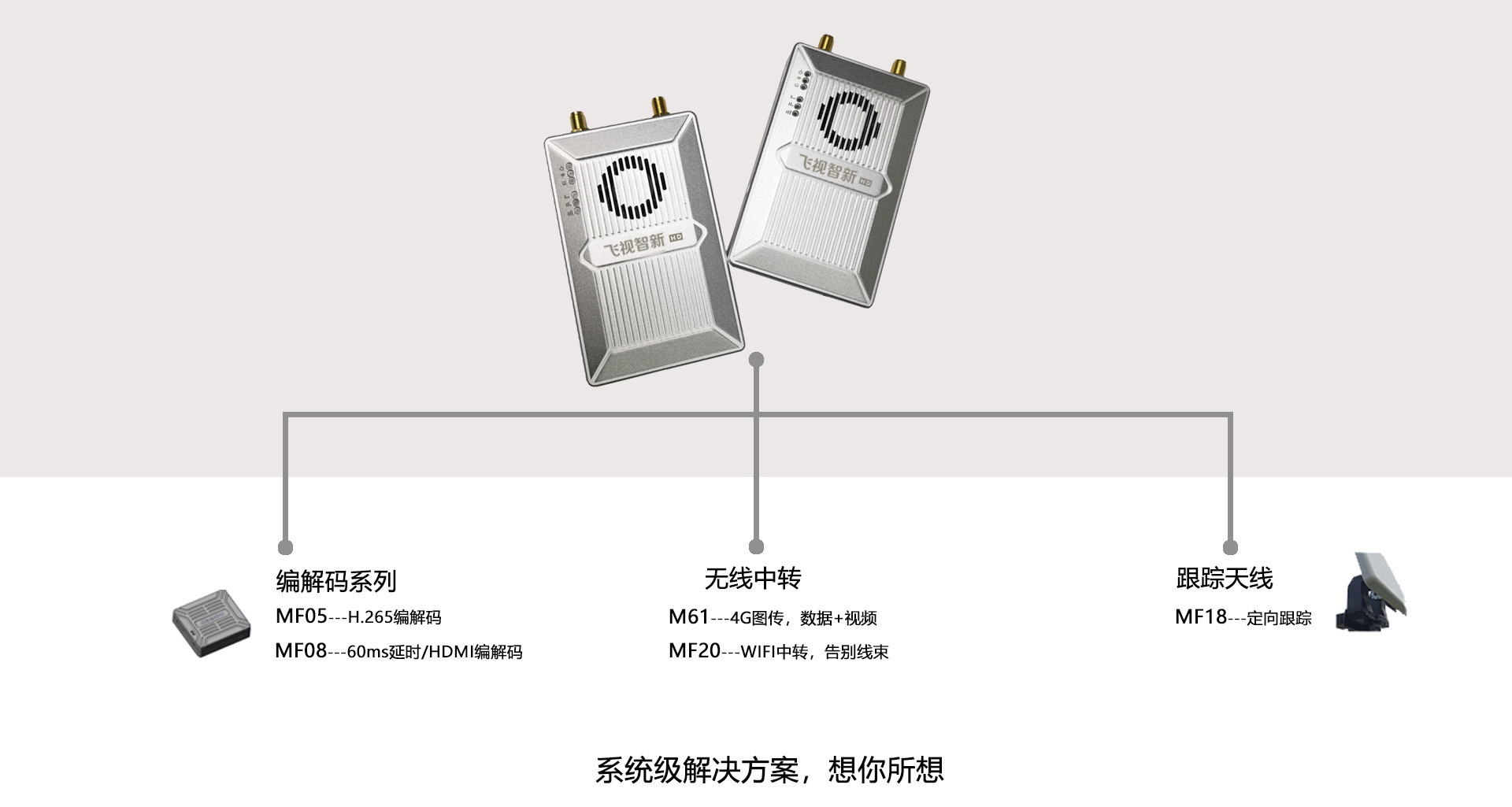

The M52 can be seamlessly connected to multiple series of products of Wanlian Hangtong. No additional configuration is required. Our codec product series can meet your needs for diverse mount interfaces and ultra-low latency. With 4G image transmission products, you can transfer the video and data of the drone's field operations to the Internet, and get rid of the constraints of distance. By tracking the antenna, you can get more stable transmission and give full play to the M52's transmission performance. More surprises are waiting for you to explore.
* 1 For the introduction of M52 and codec series products MF05 and MF08, please refer to the codec product page or user manual.
* 2 M52 needs to cooperate with our MF05D product to realize HD video hard decoding.
* 3 Measured under visible interference-free conditions.
