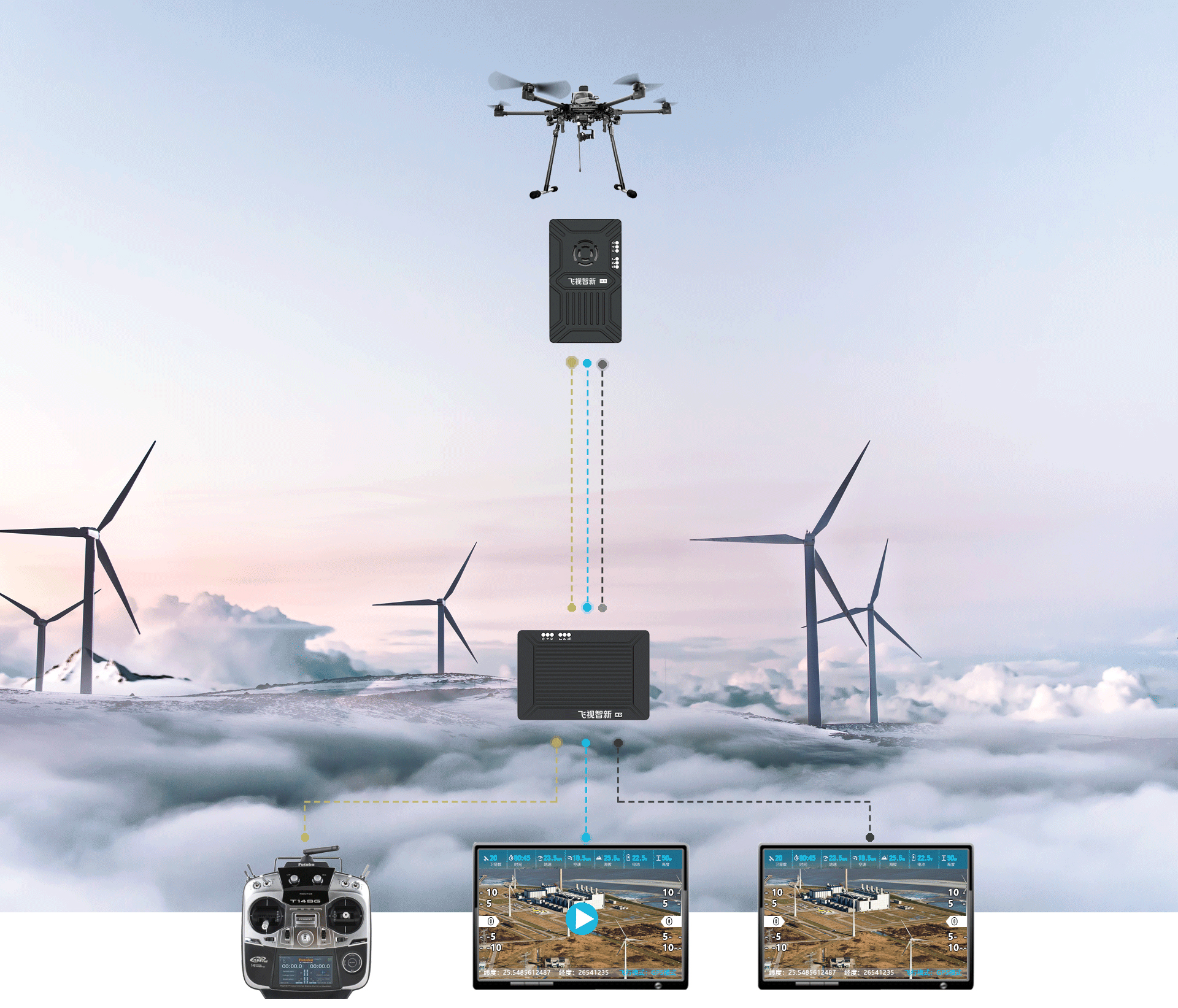

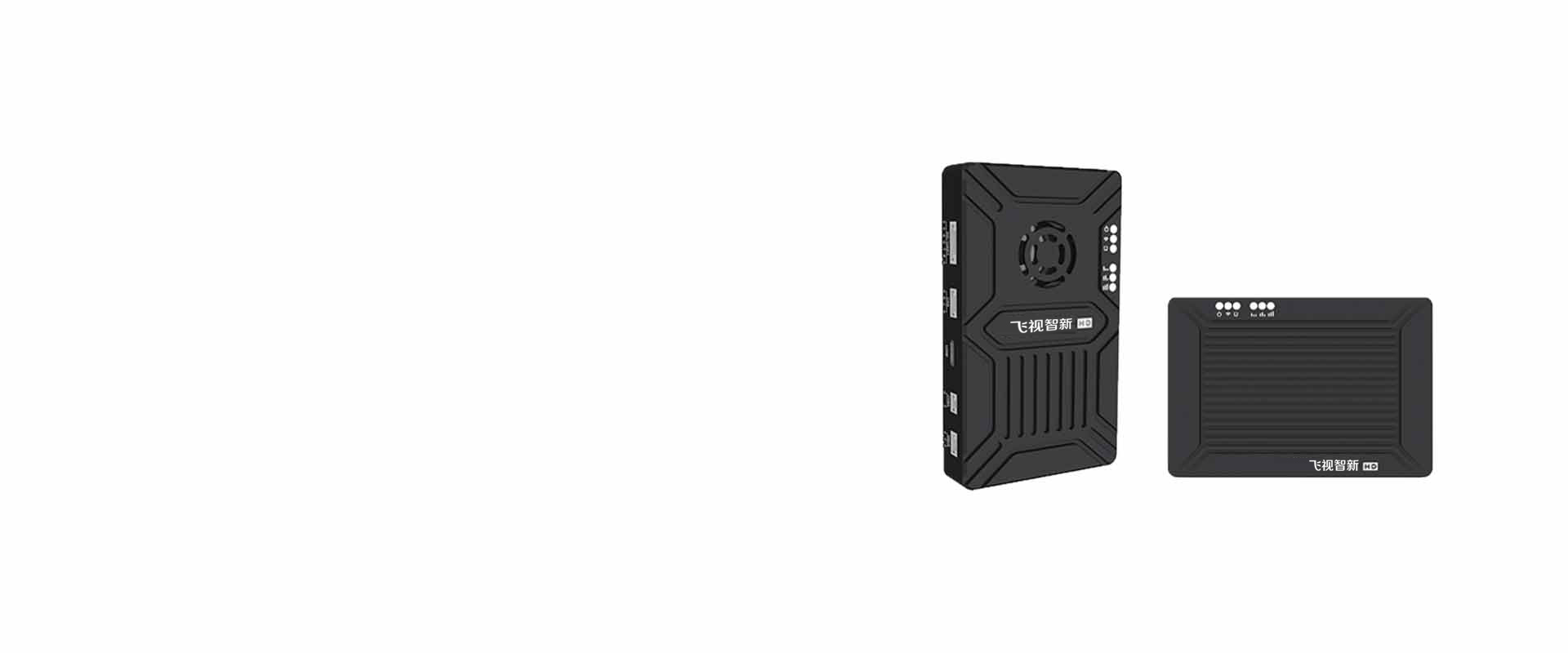

M50 / M51 can transmit real-time high-definition video and flight control data of the drone to the ground station, and also upload control information of the ground station and remote control to the drone, which can meet the low-latency transmission requirements of the drone . The M50 / M51 has a high degree of integration, has a variety of video input and output interfaces and data interfaces, and can meet the diverse mounting requirements of industry-level drones. It is the "integrator" of industry applications.
M50 / M51 can transmit high-definition video, flight control data and remote control data at the same time, and can also expand and transmit other mounted control information at the same time, truly achieving All In One.

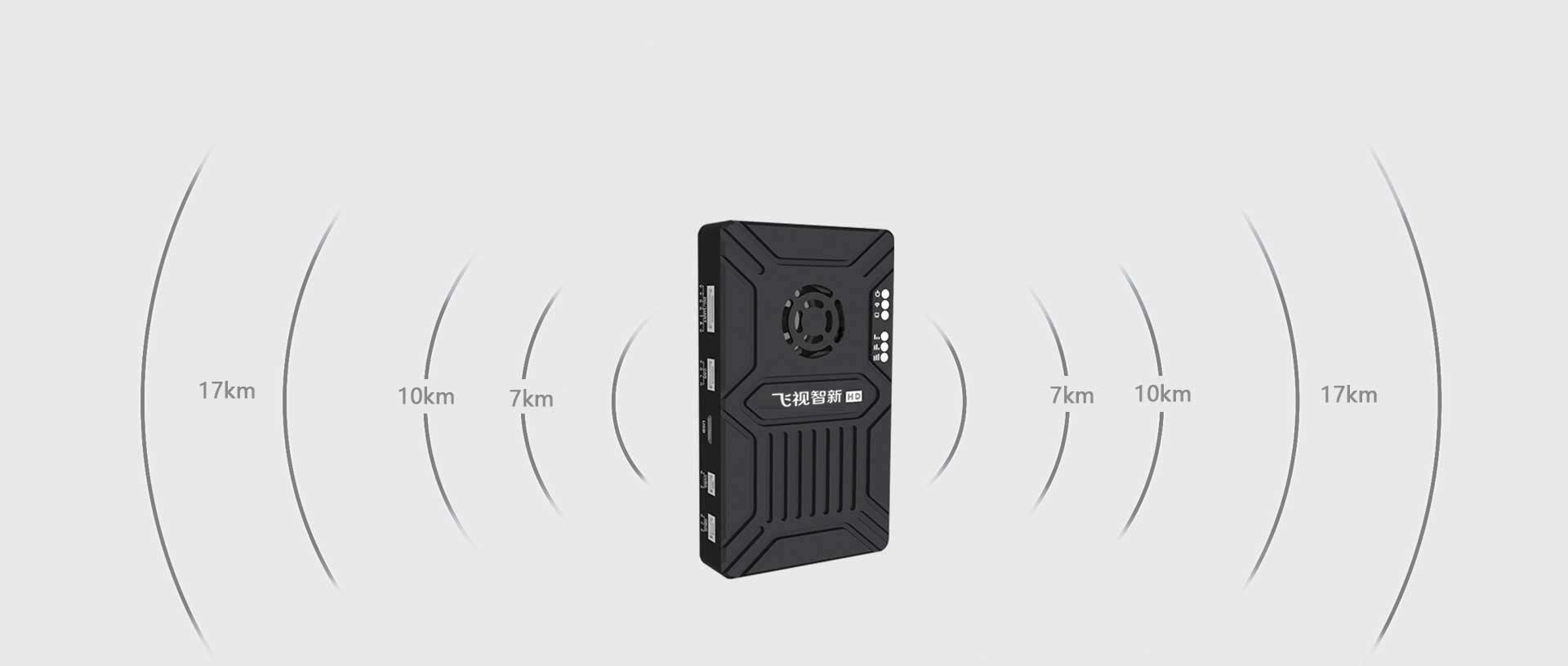

The maximum transmission distance of M50 can reach 7km, and the maximum transmission distance of M51 can reach 17km.
M50 / M51 has three selectable frequency bands: 800MHz, 1.4GHz, 2.4GHz. Among them, the 2.4GHz band has passed the type approval and CE certification of the Ministry of Industry and Information Technology. Users can choose the required frequency band through Maestro Assistant tool or Web page.
* Please select a frequency band that meets local radio management requirements

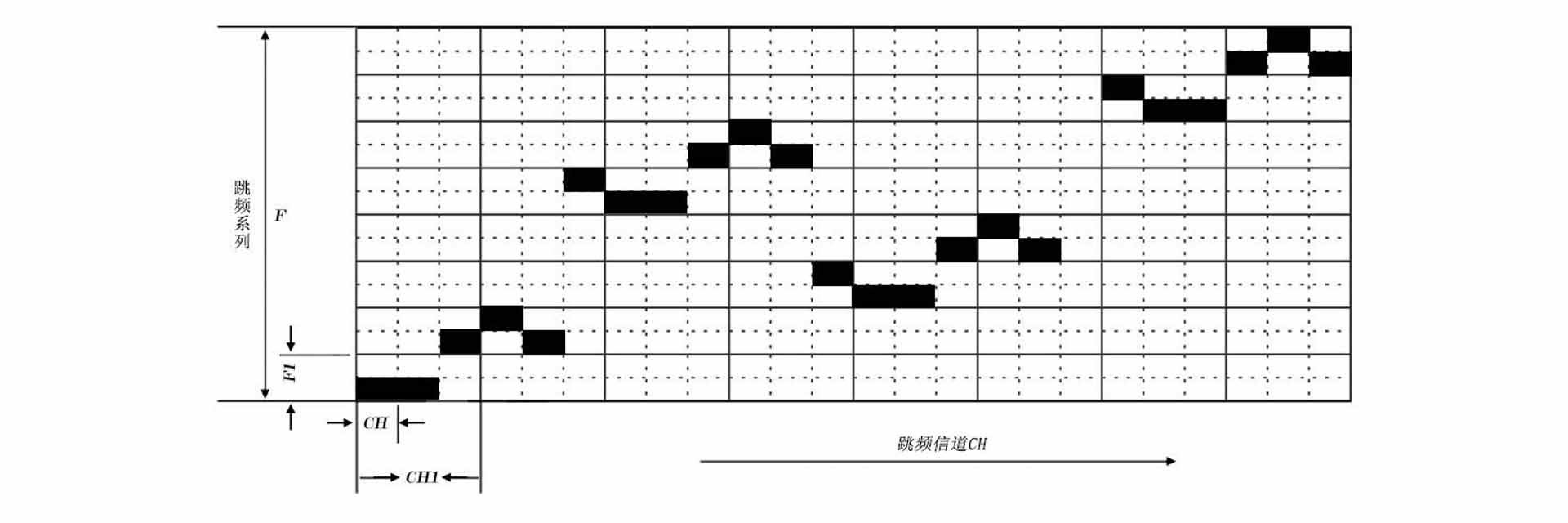

M50 / M51 adopts advanced wireless communication technology, which can work in fixed frequency and frequency hopping mode. When the user sets the working mode to narrowband, it can meet the simultaneous use of four drones in the same airspace.

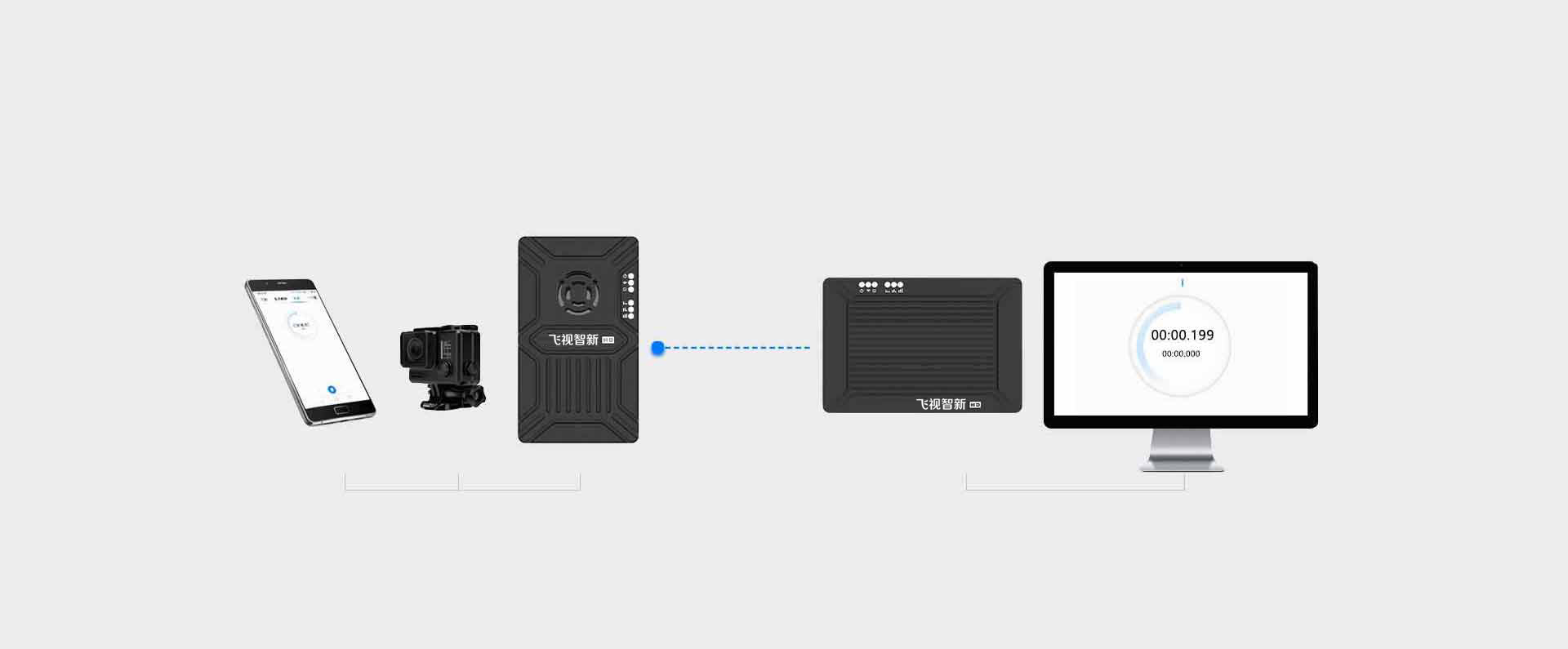

The M50 / M51 uses advanced codec technology with digital transmission latency of less than 30ms and end-to-end latency of 1080P60 HD video of less than 200ms, giving drone operators an excellent real-time experience.

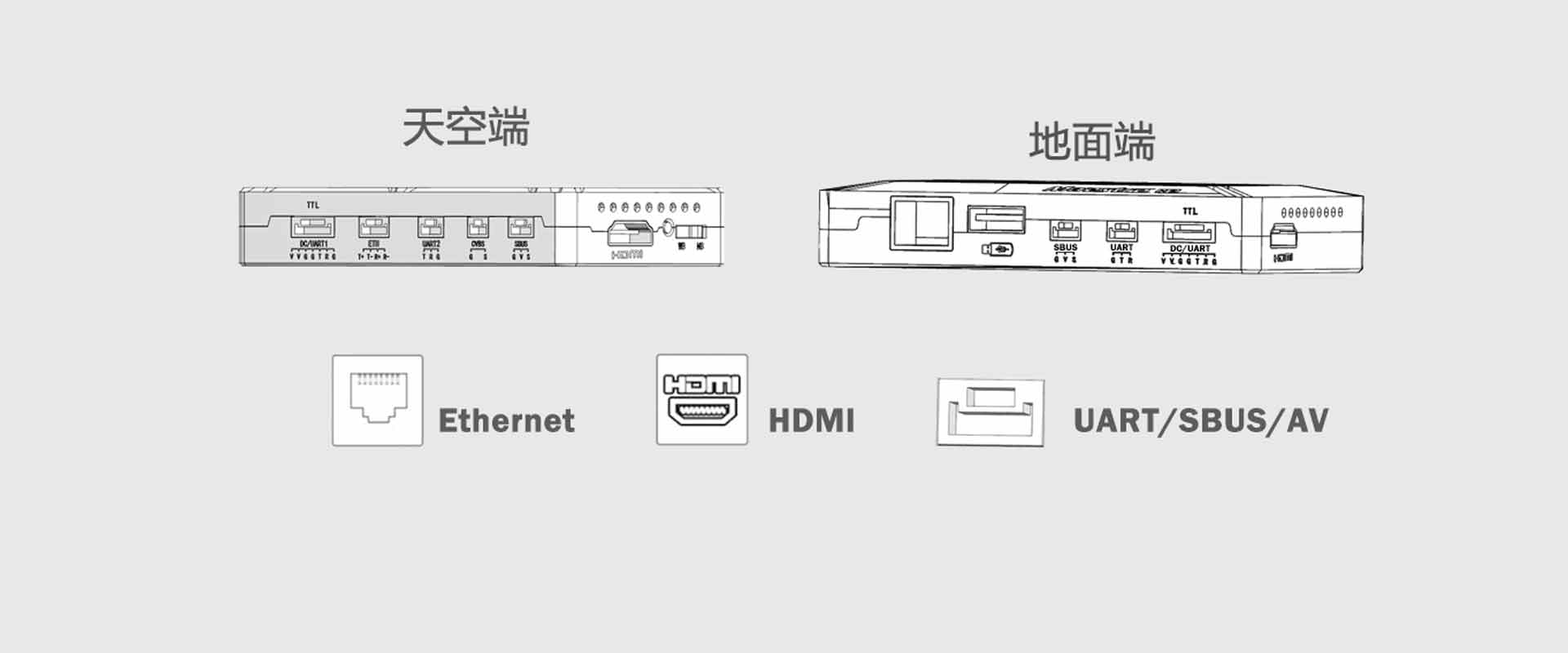

Sky has video interfaces such as HDMI / network port / AV, 2 UART interfaces, 1 SBUS output interface. The ground end has HDMI / network port, 2 UART interfaces, 1 SBUS input interface. The serial port supports Mavlink protocol and Transparent protocol. The rich interface enables the M50 / M51 to meet diverse mounting needs.
